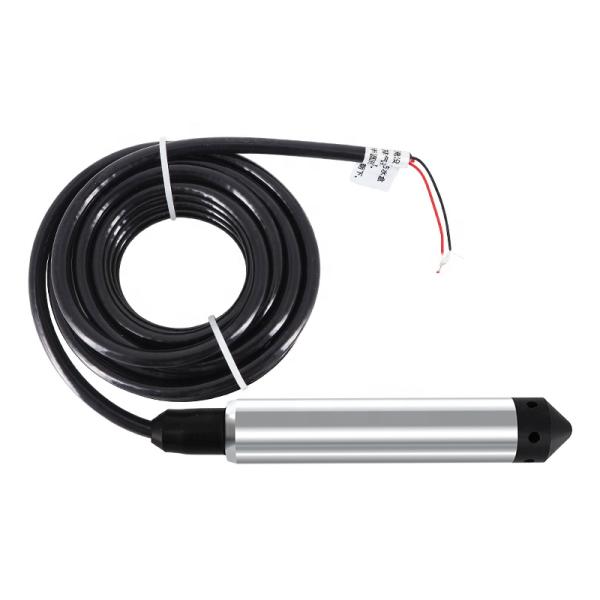

316L Stainless Steel Submersible Water Pressure Level Transmitter 24VDC/12VDC/5VDC

Customized support : OEM, ODM

Place of Origin : Beijing, China

Brand Name : BGT

Model Number : BGT-GL801

Product name : Submersible water pressure tank level sensor

Output signal : 4-20mA

Accuracy : 0.5% FS (can customize 0.2% FS)

Power supply : 24VDC/12VDC/5VDC

Diaphragm, shell material : 316L Stainless steel

Cable length : 5m (optional)

Measuring range : 0-5m

Protection level : IP68

Operating temperature : -20℃-70℃

Certification : CE

Packaging Details : Box

MOQ : 1 piece

Price : $29.97/pieces 2-24 pieces

Contact Now

Please Attention

316L Stainless Steel Submersible Water Pressure Level Transmitter 24VDC/12VDC/5VDC

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Submersible water pressure tank level sensor

BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.

The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.

Product Parameters

Product Name	Submersible water pressure tank level sensor
Type	BGT-GL801
Output signal	4-20mA;(Optional: RS485)
Measuring range	0-5m;
Accuracy	0.5% FS (can customize 0.2% FS)
Power supply	24VDC（Default, 12VDC/5VDC for optional)
Diaphragm, shell material	316L Stainless steel
Cable length	5m (optional)
Protection level	IP68
Operating temperature	-20℃-70℃

For other measuring range ( max0-200M), please ask us for price.

The price is 4-20mA, 24VDC power , measuring range 0-5M, cable lenth 5M. For other requirement, price will be different

Products Details

Wiring method

For example:

Output 4-20mA (Two-wire)： Red: VCC Black: GND Calculation formula： H=(Measured current value - 4)/16*Range H-water level,”m”; Range: if measuring range is 10m, then range=10 )
